Wiley Canyon 40′ Cut Wall

Wiley Canyon Road

Unique Features:

To lengthen the radius of a curve as well as to smooth out the road alignment a cut was required for Wiley Canyon.  To accomplish this without shoring the Stresswall system was selected.  Although the wall face is at a 1:12 batter (essentially vertical) random planting areas within the wall face for internal landscaping options were made possible with the large random planting “pockets” in the wall face.  Plants included both large flowering bushes as well as vines and ivy.

The counterforts were placed in slots cut into the existing embankment so that no shoring was required as would have been the case for other wall options.  Wall cut was utilized for wall fill.

Area Noveco Inc. Client Installation of Stresswall into Existing Slope Scope Of Work

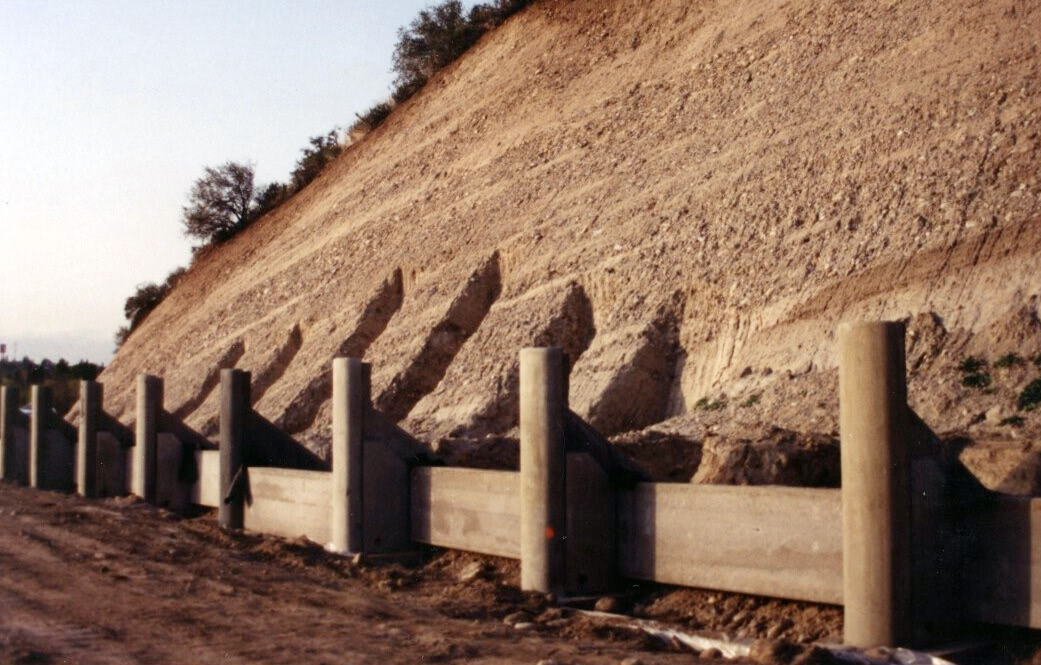

counterforts set in slot cuts

counterforts set in slot cuts

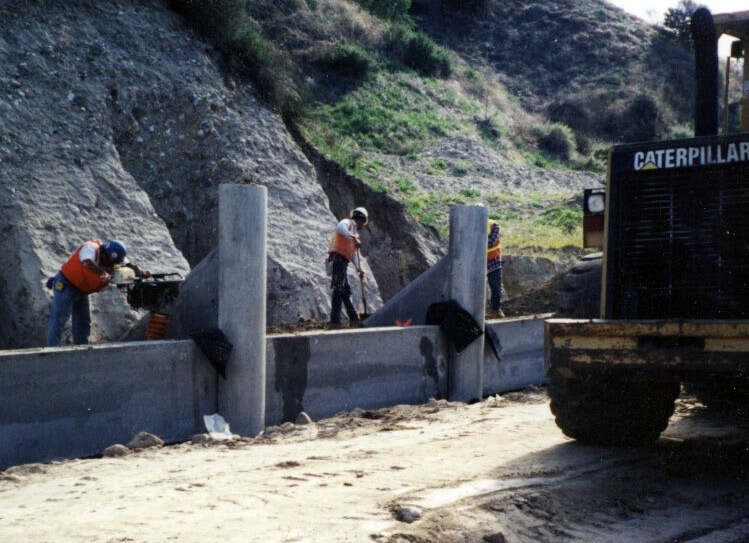

WC17

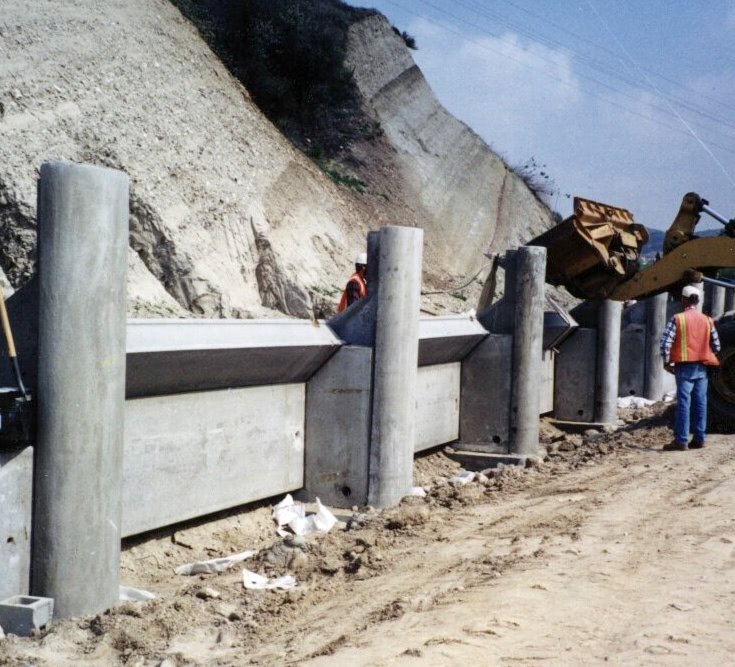

Offset planting tier panels

Offset planting tier panels

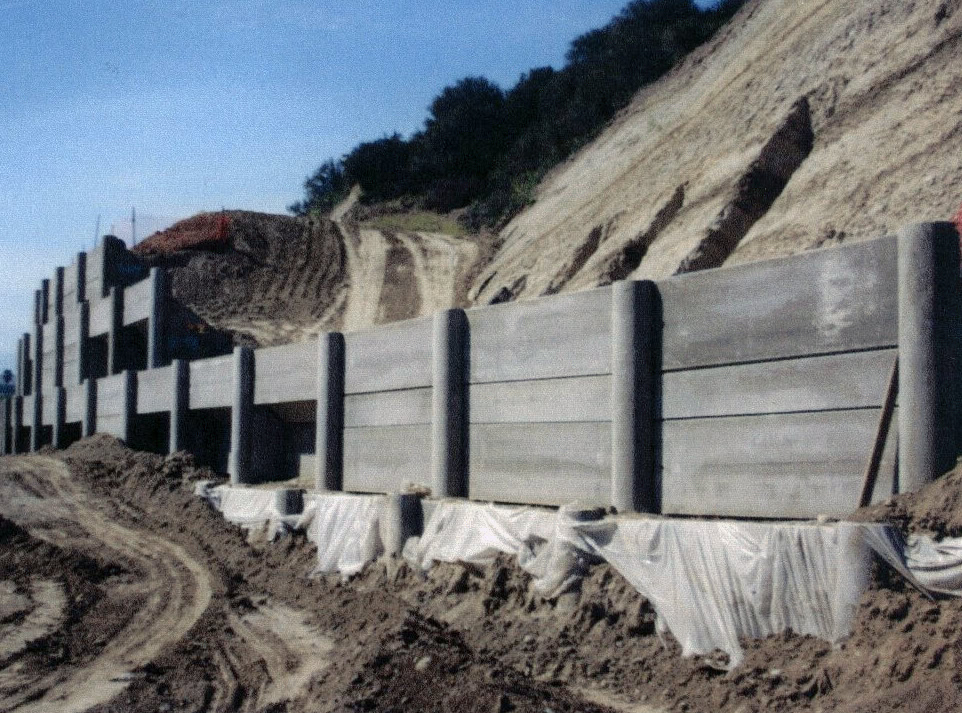

partial elevation looking North

partial elevation looking North

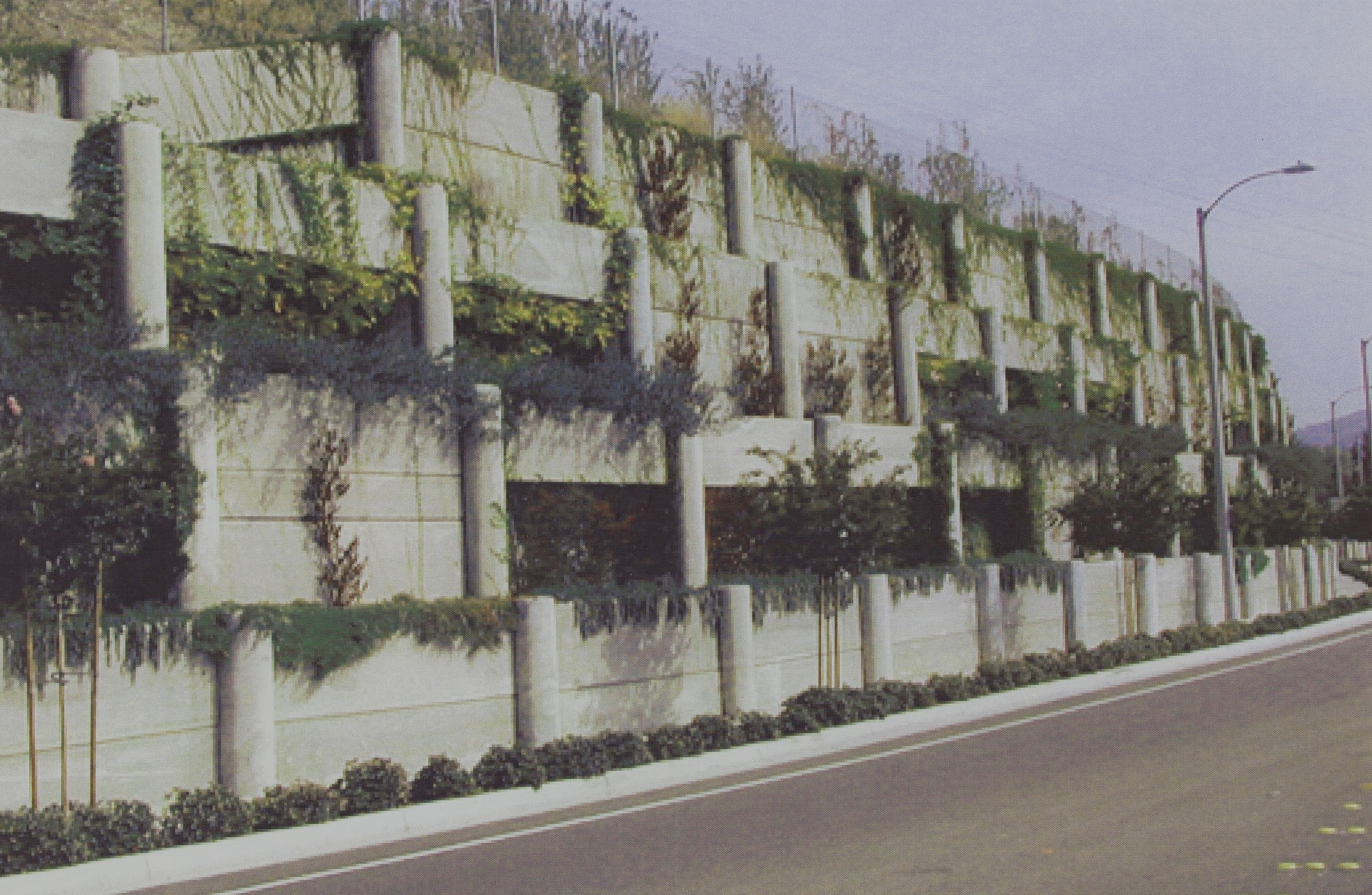

Partial elevation view with initial landscaping installed

Partial elevation view with initial landscaping installed
